Screw Barrel for Injection Molding Bimetallic Injection Screw Barrel/Injection Molding Machine Screw Barrel
Product Description
WHY CHOOSE US?!
1.JAIHO only supply competitive advantage products!
2.Full refund or Free replacement in case of bad quality or late delivery!
3.JAIHO are focus on service for solution, not only supply screw barrel parts!
4.Quality is our culture, with us your money in safe your business in safe!!!
5.JAIHO is the 2018 year the most welcomed Alibaba gold supplier!!!
Please you can check our factory video from Facebook or Youtube as below link(100% original):
Facebook: www.facebook.com/jaihogroup.com.cn
Youtube: https://youtu.be/jFI8SeAqZBE
Screw Barrel for Injection Molding/Bimetallic Injection Screw Barrel/Injection Molding Machine Screw Barrel
Screw barrel for injection molding machine TYPE:
Gradual type,mutant yupe, wave type,barrier type,double barrier type,shunt type,separation ytpe,exhaust type,pin type,mixed type,double-head type,tree-head type,multi head type ect.
Screw barrel for plastic injection mold machine apply to general plastic and engineering plastic like PA PP PC ABS AS PS PVC PMM LCP ect.
Injection molding machine screw and barrel set contains screw, Screw Head, check ring, non return valve, barrel, nozzle and flange. We can provide customers accessories according to customers' requirements. Screw can be matched with different heads,and barrel can be matched with different nozzles.
| The most common type of Injection Screw barrel | |||||
| Amount of injection | screw diameter length(mm) | barrel diameter length(mm) | Amount of injection(g) | screw diameter length(mm) | barrel diameter length(mm) |
| (g) | |||||
| 30-90 | Φ30x900 | Φ85x860 | 800-1250 | Φ75x1825 | Φ170x1725 |
| 60-125 | Φ35x910 | Φ85x860 | 1000-1500 | Φ80x2000 | Φ180x1805 |
| 100-150 | Φ38x935 | Φ95x900 | 1250-2000 | Φ85x2300 | Φ190x1900 |
| 125-160 | Φ40x980 | Φ95x910 | 2000-3000 | Φ90x2700 | Φ210x2000 |
| 125-300 | Φ42x1030 | Φ105x8880 | 2500-5000 | Φ100x2600 | Φ230x2405 |
| 250-400 | Φ45x1210 | Φ115x1165 | 3000-6000 | Φ110x2600 | Φ256x2590 |
| 300-500 | Φ50x1300 | Φ125x1260 | 4000-10000 | Φ120x2800 | Φ256x2800 |
| 450-600 | Φ55x1335 | Φ130x1320 | 6000-8000 | Φ130x3010 | Φ256x2970 |
| 500-700 | Φ56x1350 | Φ130x1350 | 8000-10000 | Φ145x3010 | Φ256x3200 |
| 500-700 | Φ60x1380 | Φ140x1350 | 10000-15000 | Φ160x3500 | Φ270x3200 |
| 650-800 | Φ65x1415 | Φ150x1420 | 13000-25000 | Φ170x3415 | Φ317x3380 |
| 700-1000 | Φ70x1790 | Φ160x1685 | |||
| Model | L/D | output capacity(kg/h) | screw rotation speed(rpm) | driving motor(kw) | center heigh(mm) |
| JG | 20:1 | 3-5 | 10-60 | 1.1/1.5/2.2 | 1000-1400 |
| JG | 25:1 | 5-8 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
| JG | 25:1 | 5-10 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
| JG | 25-36:1 | 10-120 | 10-150 | 5.5-22 | 1000-1400 |
| JG | 25-36:1 | 60-300 | 20-150 | 22-75 | 1000 |
| JG | 25-36:1 | 200-450 | 20-150 | 30-132 | 1000 |
| JG | 25-36:1 | 180-600 | 20-110 | 30-185 | 1000-1100 |
| JG | 25-36:1 | 320-1000 | 20-90 | 75-280 | 1000-1250 |
This parameter is based on our domestic machines and is just for your reference. If you have your own parameter, we can also make it.
Showing our other type screw barrel
| Technical Information | |||
| Main Base materials | 1.38CrMoAlA (SACM645) | Main Alloy Materials | 1. Ni-based alloy/Deloro alloy |
| 2. SKD-61 (Special Tool Steel) | 2. Tungsten carbide/Wolfram carbide | ||
| 3. 42CrMo (Ultrahigh StrengthSteel) | 3. NiCo-based alloy | ||
| 4. DC53 (Cold WorkDie Steel) | 4. Fe-based alloy | ||
| 5. W6Mo5Cr4V2 (High-SpeedToolSteel) | 5. Co-based alloy | ||
| Processing Technics | 1. Heat treatment | Technical parameters | Nitriding layer depth:0.5-0.8mm |
| 2. Quenching | Nitrided hardness:900-1000HV | ||
| 3. Nitriding treatment | Bimetallic layer depth:3 mm | ||
| 4. Bimetallic alloy welding for screw | Bimetallic hardness:57~69HRC | ||
| 5. Bimetallic alloy centrifugal casting for barrel | Hard-chrome plating hardness after nitriding:≥950HV | ||
| 6. Hard-chrome electroplating | Chrome-plating layer depth:0.03-0.09mm | ||
| Linearity of screw:0.015mm | Surface roughness:Ra 0.4 | ||
In today’s competitive market, making a PVC or other extruder product at maximum productivity levels and the lowest possible cost is paramount in growing your business, increasing profits and meeting your overall business objectives.
For over one decades Jaiho has been a leading supplier in machine components for the Plastic, Food and Rubber industry. Flite Technology has earned the reputation as an innovator and industry leader in the manufacturing of precision single and twin feed screws and barrels. Whether it's new, rebuilding, designing or repair, you can be confident our service, quality and performance will be unsurpassed.
We also offer very aggressive competitive pricing. Pick up and delivery service is available as well as reverse engineering for existing worn out parts.
We are focus on service for solution, not only supply screw barrel.
Our new workshop 12000SQM, Totally have 5 engineers team, and 50 good experinced employee, registered capital 8 billion USD. we are also German technical cooperation with 20% share.
We are foucs on each process to make sure each extruder machine single barrel is qualified according to Germany technical requirement.

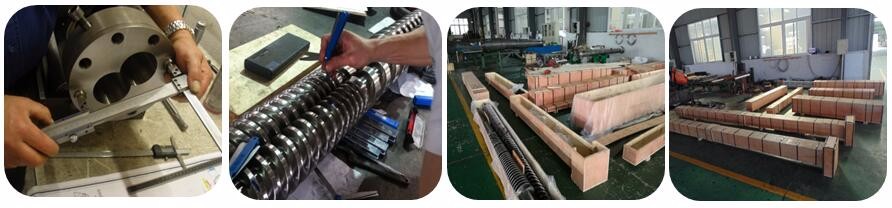

We will check each parameters for finished parts to make sure all qualified according to Germany technical requirements.
We have own heat treatment furnace and nitriding furnace to make customer hardness requirement, also we do the bimetallic/allloy screw barrel by spraying and centrifugal casting process.
- Be brushed anti-corrosive oil on screw barrel
- Packed with film for screw barrel
- Packed in the wooden for screw barrel.
1. Q: How about JAIHO? A factory or trading company?
R:A trading company with our own factory for 10 years experienced, Germany Technical invested since 2002, leading screw barrel manufacturer in China.
2. Q:What's Jaiho capacity?
R:Passed ISO 9001:2008, Our workshop 12000SQM, 5 Enginners team, 50 good experienced employee, All CNC
computer control screw processing, 1000sets screw barrel capacity per month.
3. Q:What's the delivery time?
R:for regular size, we have finished stock and semi-finished stock, 2weeks max enough
for customized, normally 3~4weeks.
4.Q:How about Jaiho screw barrel quality and price?
R:Germany Technical invested, top quality in China with competitive price and globle after-sale service
5. Q:How to make sure the screw suitable for my extruder?
R:Let's know what size you want and we can check it with our drawing.We have lots of BEX,KMD,CMT,AMUT,
Weber,Haitian,ChenHsong,ChenDe,Tedric,JSW, ect. If your extruder is made in China,it's easy to get the original
drawing.Any way,Our engineer can measure in your factory, his English is good,so cost is saved.
6. Q:what's the life time and guarantee buy from Jaiho screw barrel?
R:3~5years life time for nitriding ones and bimtallic ones will be longer
One year min. Guarantee
7.Q:Where is Jaiho factory and how to reach there?
R:At Cengangzhen,Dinghai,Zhoushan City,Zhejiang Province. It's near Shanghai City and Ningbo City,If you want to visit us,we can pick up you there.
8.Q:How to contact with you?
R:Just reply to me below if have any question.
9.Q:Can i be a distributor of Jai Ho?What are the benefit of being a Jai Ho distributor?
R:Sure,anytime.Just contact us immediately for further detail.Special discount,technical and experience support more priority can provide for our new partners.
